road Bikes

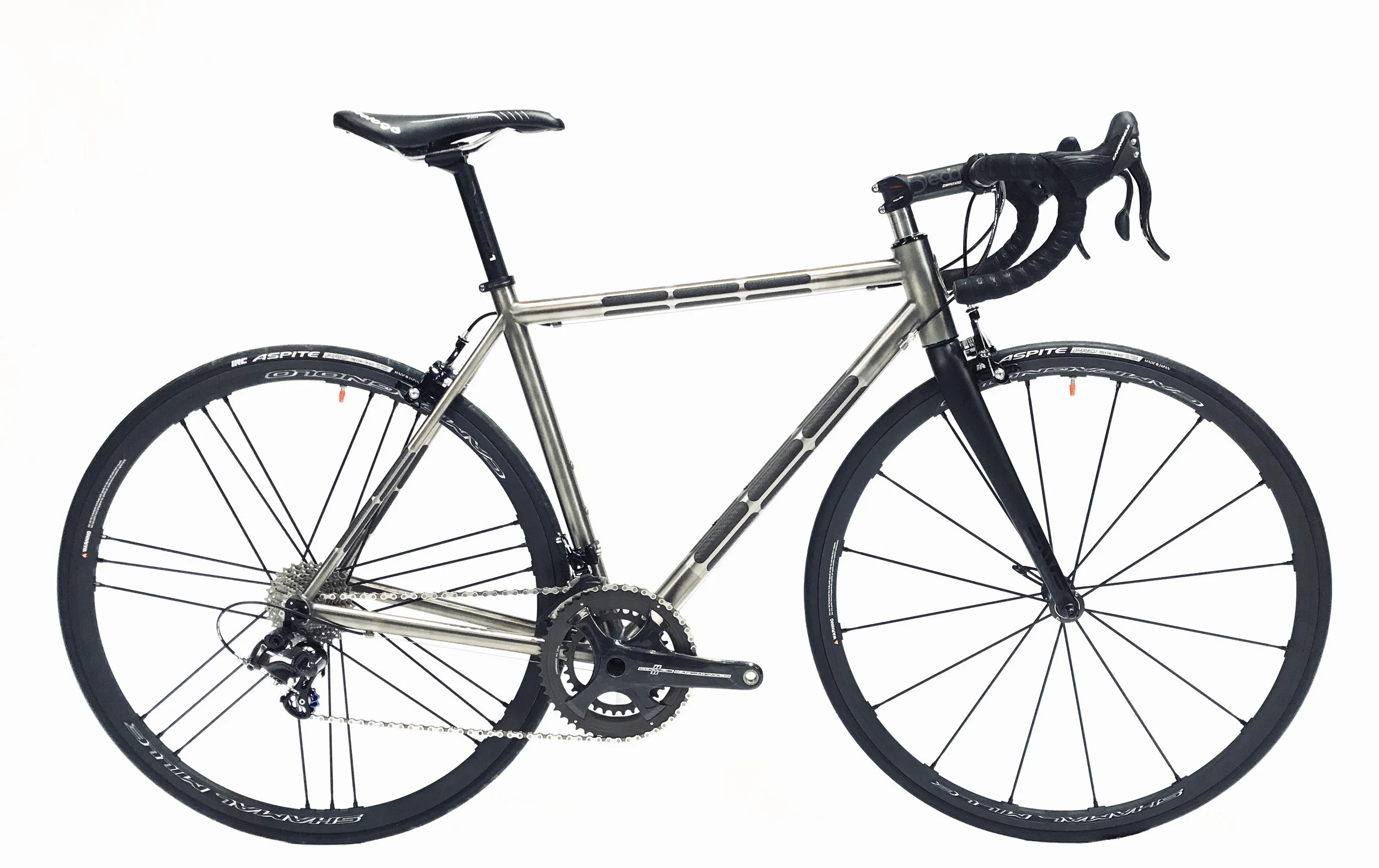

Vader ExoGrid

Utilizing ExoGrid technology, which combines the lightness and stiffness of carbon fiber and the strength and compliance of titanium, the Vader offers a remarkably smooth, resilient ride. Every tube built with ExoGrid technology is laser cut and bladder infused, ensuring a seamless look and unparalleled feel. Dampening road shock while retaining rigidity at key junctures, such as the bottom bracket, the Vader Exogrid truly stands apart from even the finest frames.
MSRP: $3,950 (frame only) | Stock Sizes + Custom Sizes

FRAME SPECIFICATIONS

  • 44MM STRAIGHT TAPER HEAD TUBE

  • BOTTOM BRACKET: BSA - PF30 - BB30

  • BRAKES: DISC OR CALIPER BRAKE OPTIONS

  • CABLE ROUTING: INTERNAL OR EXTERNAL ROUTING

  • DROPOUTS: 130X10MM QR, 142X12MM THRU AXLE OPTIONS

  • FINISH: HAND-BRUSHED FINISH WITH Carbon fiber inlay

  • GEOMETRY: CHOOSE BETWEEN STOCK OR CUSTOM SPECIFICATIONS

  • MATERIAL: THIN-WALLED OVERSIZED 3/2.5 TItanium and Carbon

  • SEATPOST: 27.2MM OR 31.6MM OPTIONS

  • TUBES: RIDER SPECIFIC SELECTION

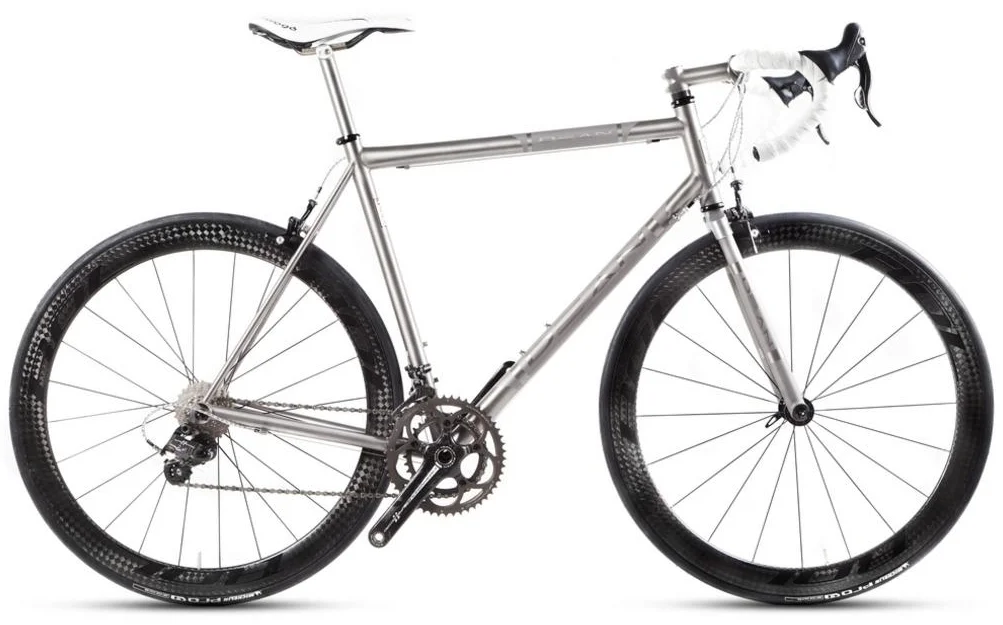

El Diente SL

One of the lightest frames on the market, the El Diente Super Lite (SL) is built to order, providing precisely what you are looking for in frame geometry. The topflight frame is crafted from seamless 3/2.5 titanium, cold-worked and stress-relieved for extra stiffness and durability. Additional features also come stock on the SL, including your choice of tapered 44m oversized head tube, custom blended, rider specific tubing, e.g., PF30, BB30, or Std. 68 English bottom bracket options, and custom hand-brushed finishes.
MSRP: $3,400 (frame only) | Stock Sizes + Custom Sizes

Frame Specifications

  • 44mm straight taper head tube

  • Bottom Bracket: BSA - PF30 - BB30

  • Brakes: Disc or Caliper brake options

  • Cable Routing: internal or external routing

  • Dropouts: 130x10mm QR, 142x12mm thru axle options

  • Finish: Hand-brushed finish with etched logo option

  • Geometry: Choose between stock or custom specifications

  • Material: Thin-walled oversized 3/2.5 titanium throughout

  • Seatpost: 27.2mm or 31.6mm options

  • Tubes: Rider specific selection


El Diente

Designed for the discriminating road rider, the El Diente also offers the best value. Weighting is only 3.0 lbs, every frame is hand-crafted from the finest American made seamless 3/2.5 radial titanium that is cold-worked and stress-relieved for extra stiffness. The El Diente's features include riders-specific proprietary custom-gauged tubing, a machine-butted 44mm straight taper headtube, weld-in H20 bosses, and extra stout, oversized, and ovalized chainstays. Dropout choices include 130 x 10mm standard or 142 x 12mm thru axle, caliper, or disc brake options. You can also choose between a PF30, BB30 or 68 English bottom bracket.
MSRP: $2,400 (frame only) | Stock Sizes + Custom Sizes

Frame Specifications

  • 44mm straight taper head tube

  • Bottom Bracket: BSA - PF30 - BB30

  • Brakes: Disc or Caliper brake options

  • Cable Routing: internal or external routing

  • Dropouts: 130x10mm QR, 142x12mm thru axle options

  • Finish: Hand-brushed finish with etched logo option

  • Geometry: Choose between stock or custom specifications

  • Material: oversized 3/2.5 titanium throughout

  • Seatpost: 27.2mm or 31.6mm options

  • Tubes: Rider specific selection

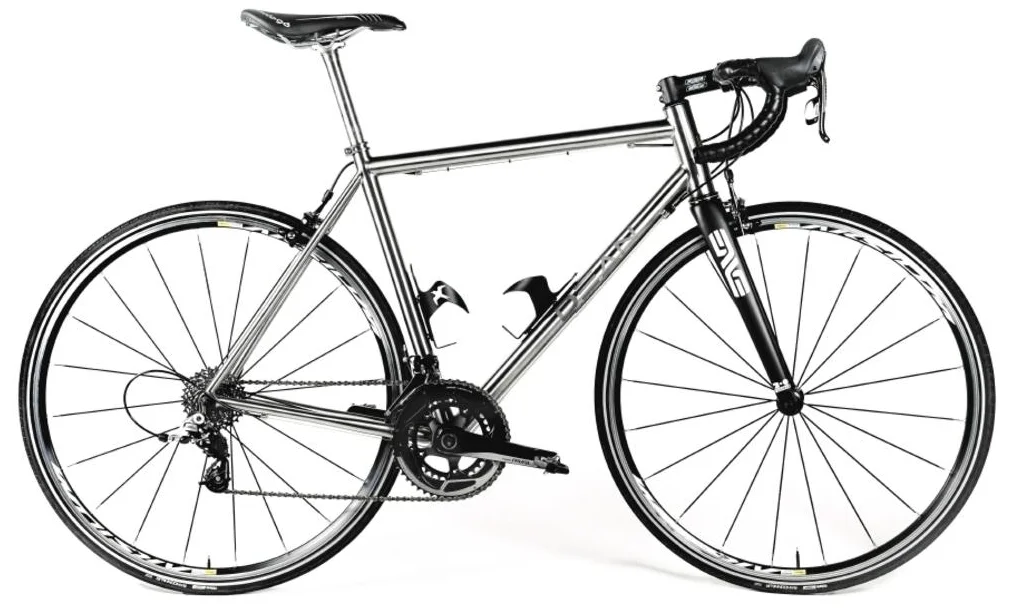

El Vado

The El Vado, like all of Dean Bikes, is designed and built by hand in Boulder, Colorado.  This frame race-ready frame is made with size specific seamless 3/2.5 titanium tubing throughout, featuring a 44mm straight tapered headtube, weld-in water bottle bosses, oversized, tapered seat stays and chain stays, and "Breezer" style dropouts.
MSRP: $1,800 (frame only) | Stock Sizes

Frame Specifications

  • Bottom Bracket: BSA

  • Brakes: Caliper brakes

  • Dropouts: "Breezer" Style

  • Finish: Satin with color decals

  • Geometry: Stock or Custom

  • Head Tube Badge: Copper

  • Head Tube: 4l4mm straight taper

  • MateriaL: Custom Gauge 3/2.5 titanium

  • Seatpost: 27.2mm

  • tubes: Rider specific selection
